24V 80A 2PK Engine Alternator For DAF 1298995 1357593 1516402 1516402R 1528596

Our products are 100% developed according to the original standard, its installation size and parts are all produced and processed according to OEM standard processing center equipment, so that all parts are exchanged with OEM original.

1.Grease: gear box and drive gear adopt German imported lubriing oil, military high and low temperature standard (-50°----230°).

2.Bearings: We all use domestic first-line brand humanism deep groove ball bearings, INA needle roller bearings imported from the United States.

3.Copper: The bare copper wire of stator coil and pure copper enameled wire of armature reach international OEM standard,high temperature resistant to 230°.

4.Steel: Stator casing fine drawing seamless steel tube,the drive gear adopts 20# steel cold chamber forging process.

5.Aluminum: All aluminum is made of international standard ADC12

6.One-way gear: Songer system standard quality

7.Relay: Taiwan Songer Imported with chip to prevent burning.

8.Generator core: all use silicon steel sheet effective magnetic field performance

9.Enameled wire: all F grade 180° high temperature wire. (Xiandeng, Great Wall two major domestic manufacturers)

10.Insulation material: 350° high temperature resistance, inner fiber and outer rubber hose, insulating paper and Valeo unified parameter platform.

11.Rotor: claw pole and rigid ring, in order to improve the low speed performance to achieve technological innovation, brushless motor all add magnetic steel.

12.Electronic components: supplied by four major domestic manufacturers (Xuzhou Yunyi, Xuzhou Xiangyue, Ningbo Chewang, Shanghai Changbo)

13.Testing: 100% production testing, warehouse testing, factory testing, and each motor is tested according to OEM standard "DV" testing equipment (testing equipment provided by Canada "DV" testing platform company in North America).

OE NO:

Bosch 0120468053, 0120468107, 0120468113, 0120468115, 0120468118, 0120468137, 0120468138, 0986037770, 0986039790, 0986049253, 1986A00182, 6033GB3006, 6033GB3014, 6033GB3054, B120500755

Cargo 112159

DAF 091295, 1178511, 1298995, 1357593, 1516402, 1516402R, 1528596

Delco 19025100, 19025107, 19025112, 19070056, DRA7770, DRA7770N

DEUTZ 01178511

FIAT 8033366

FT 1800111446

HC-PARTS CA1035IR

HELLA 8EL732707001

Iskra 11209417, 11209456, AAN3108, AAN3124, AAN3125, IA9408, IA9443

Iveco 8007700, 8033366

KASSBOHRER 7421347000

KHD 01178511, 1178511

KRAUF ALB1035DD, ALB1035KL, ALB1035LK, ALB1035LP, ALB1035UX, ALB1035YX, ALB6035NW, ALB7035AN, ALB7035NW, ALB9035NW

Liebherr 6290070

LLA 8ABH468107

LUCAS LRB00137, LRB00302, LRB137, LRB302

Magneti Marelli 943356247010

MAHLE MG493 MAN 51261017192, 51261017195, 51261019192

Mercedes Benz 0071549202, 0071549902, A0071549202, A007154920280, A007154920287, A0071549902, A007154990280

Messmer 210306

Motorherz ALB1035RB, ALB1035WA, ALB6035WA

New-Holland 87685829

Prestolite 860558, AVI144S3001, MDA39020

French car 5001837972, 5010217961

Unipoint ALT0102, ALT0103, ALT0103A, ALT0103U

Valeo 436591

WPS 12585N

ZAUFER 301N20026Z

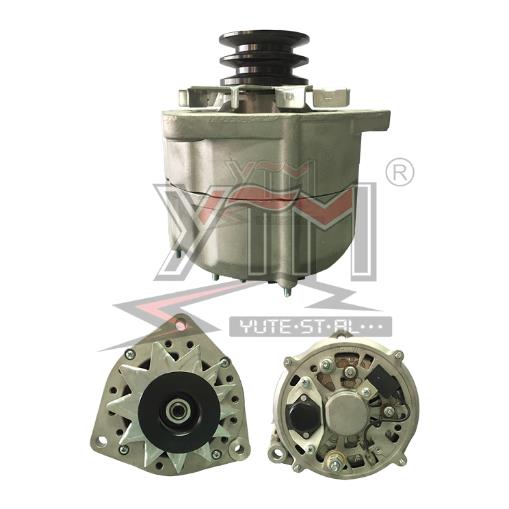

Product Image
